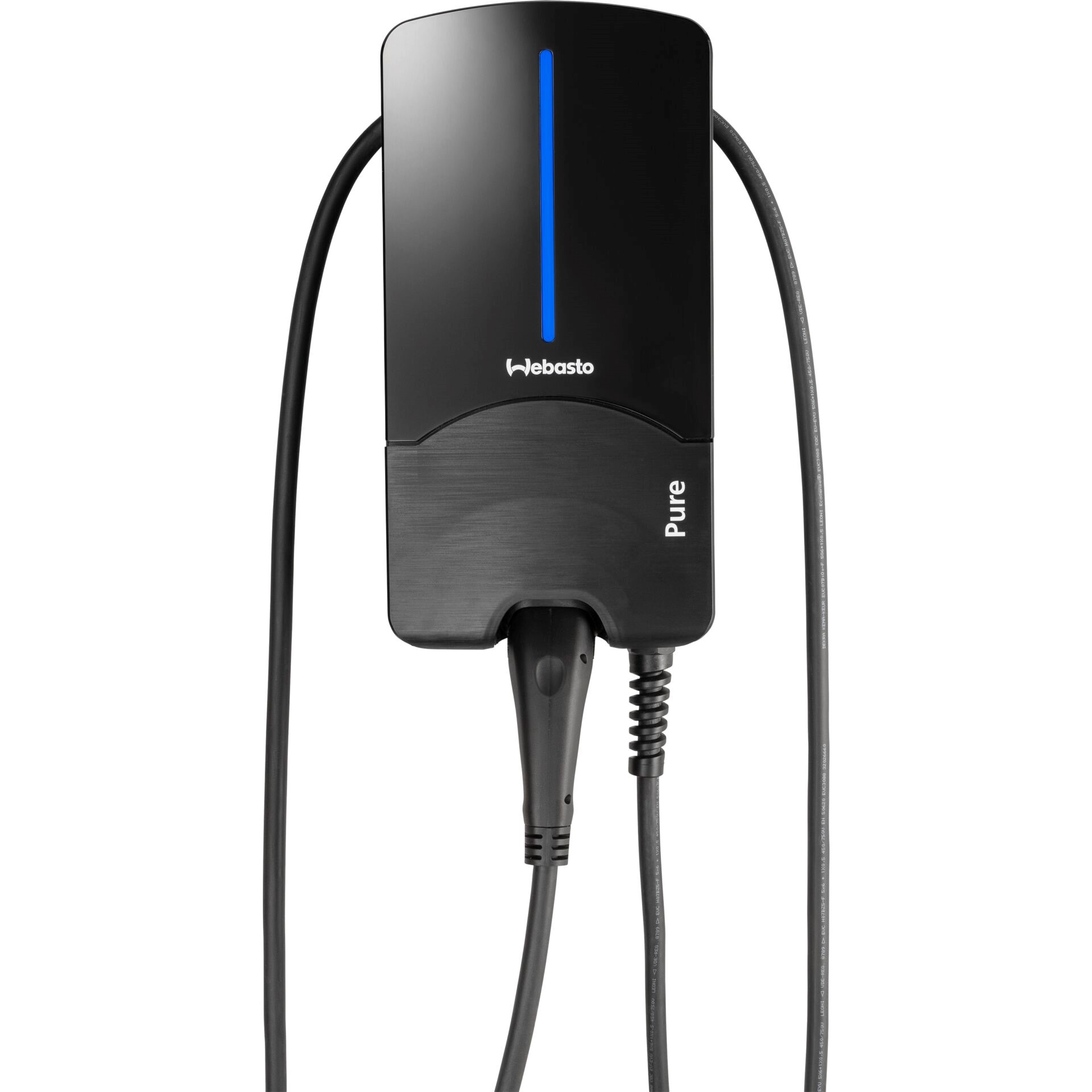

Webasto hleðslustöð Pure II 22Kw Type 2 4,5mtr kapall
111.569 kr. m vsk
Til á lager
Vörulýsing
Features:
• Remote access by the grid operator is possible to ensure grid stability
• Charging power: stepless up to 22 kW
• Integrated type 2 charging cable
• Cable length: 4.5 metres
• Cable hanger and plug socket
• Access control with universal key holder
• Operating status indicator of the charging station in optimised LED design
• Easy to use: Plug-and-play
• Easy to install
• Integrated DC fault current protection
• According to protection class I
• According to protection class IP54
• Overvoltage category: III according to EN 60664
• Input / output voltage: 230 / 400 V AC
• Rated current: 8, 10, 13, 16, 20, 25, 32 amps
• Electricity network forms:
• Split phase (L1+L2, without N)
• 1-phase, 2-phase or 3-phase
• TT / TN (1- and 3-phase) / IT (1-phase)
• Wall or stand mounting
• Dimensions: 22.5 x 44.7 x 11.6 cm
• Weight: 5.7 kg
Technical Data
o Protection Class (Water, Dust)
o IP54
o Protection Class (Shock Resistance)
o IK08
o DC Residual Current Sensor
o Yes
User Access
o Control via App
o No
Connectivity
o Bluetooth
o No
o WLAN
o No
o Network (Ethernet)
o No
o Mobile
o No
Type
o Type
o Smart Charging Station
o Max. Charging Capacity (kW)
o 22
o Plug Type
o Type 2
o Gesture Control
o No
o Charging Cable
o Included
o Cable Length (m)
o 4,5
o Touch Screen
o No
