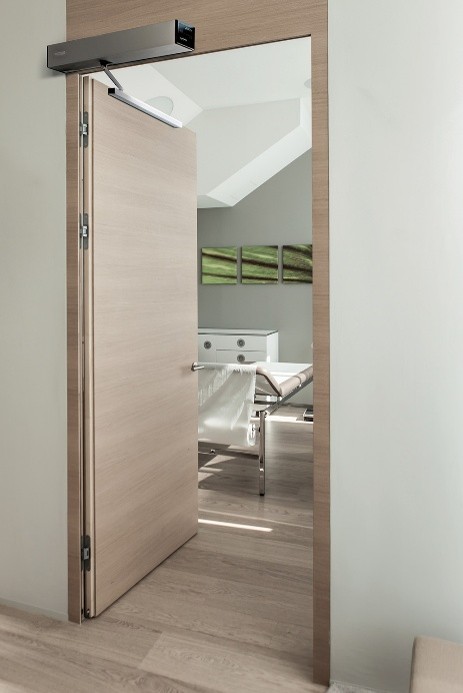

ECO Rafknúin hurðarpumpa ETS73 án arms EN 3-7

Description

Electric motor swing door drive EN 3–7, for doors up to 400kg, without FS/RS requirement

Height 95mm, width 690mm, depth 120mm. Weight 10.5kg

Ambient temperature – 15 to + 50°, max. relative humidity 85%, IP 40 (42)

Mains power: 230VAC, 50Hz, 10/13A, power consumption max. 560W

Output power: 24VDC, max. 2.0A

Lintel depth max. 250mm (SGS), 150mm (GS)

Door opening angle max. 105°

Hold-open time 0…60s / 0…180s

Motor damping continuously adjustable without power (potentiometer)

Additional functions: Servo support, Push & Go, LowEnergy, wind load compensation

Design: Cover hood stainless steel matt brushed
